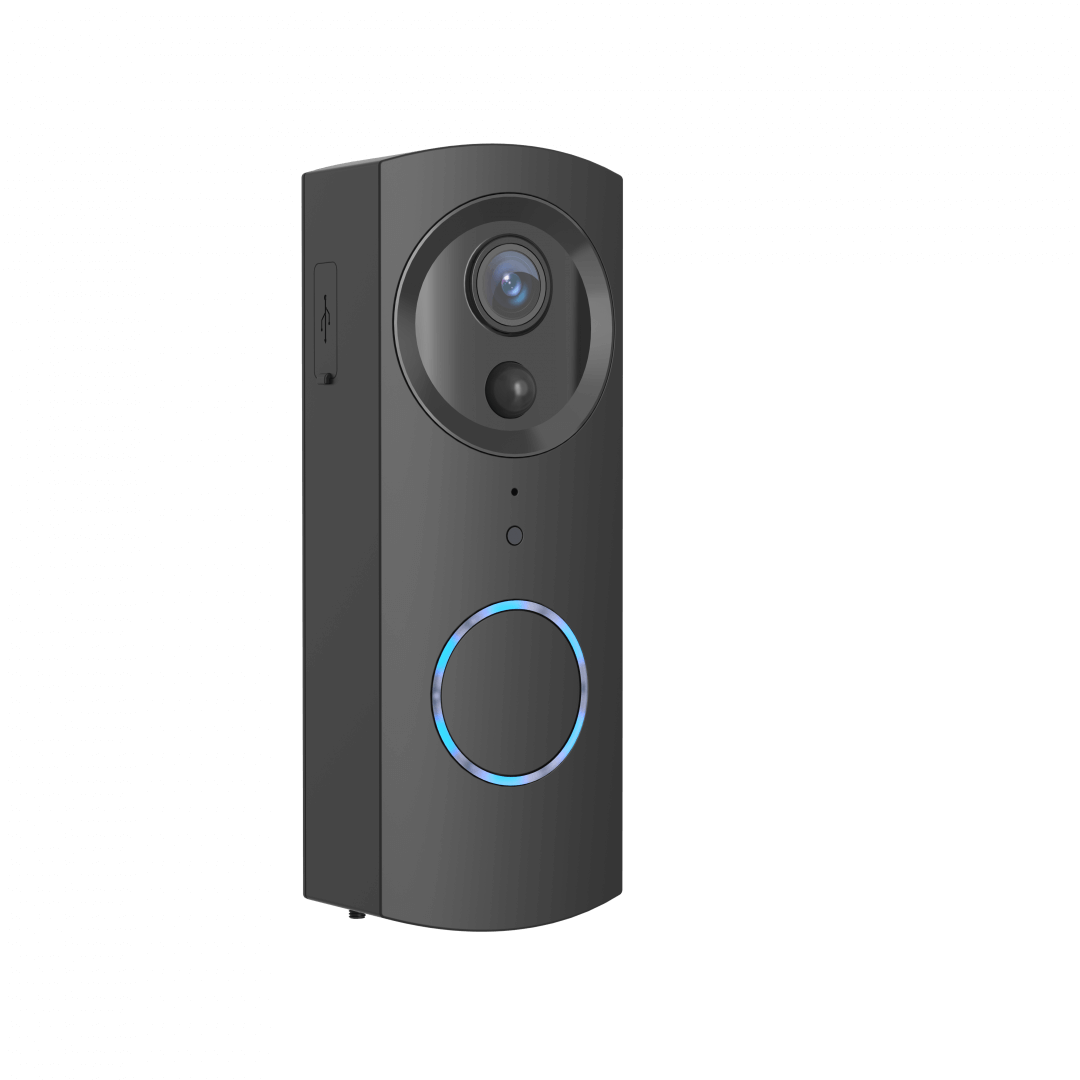

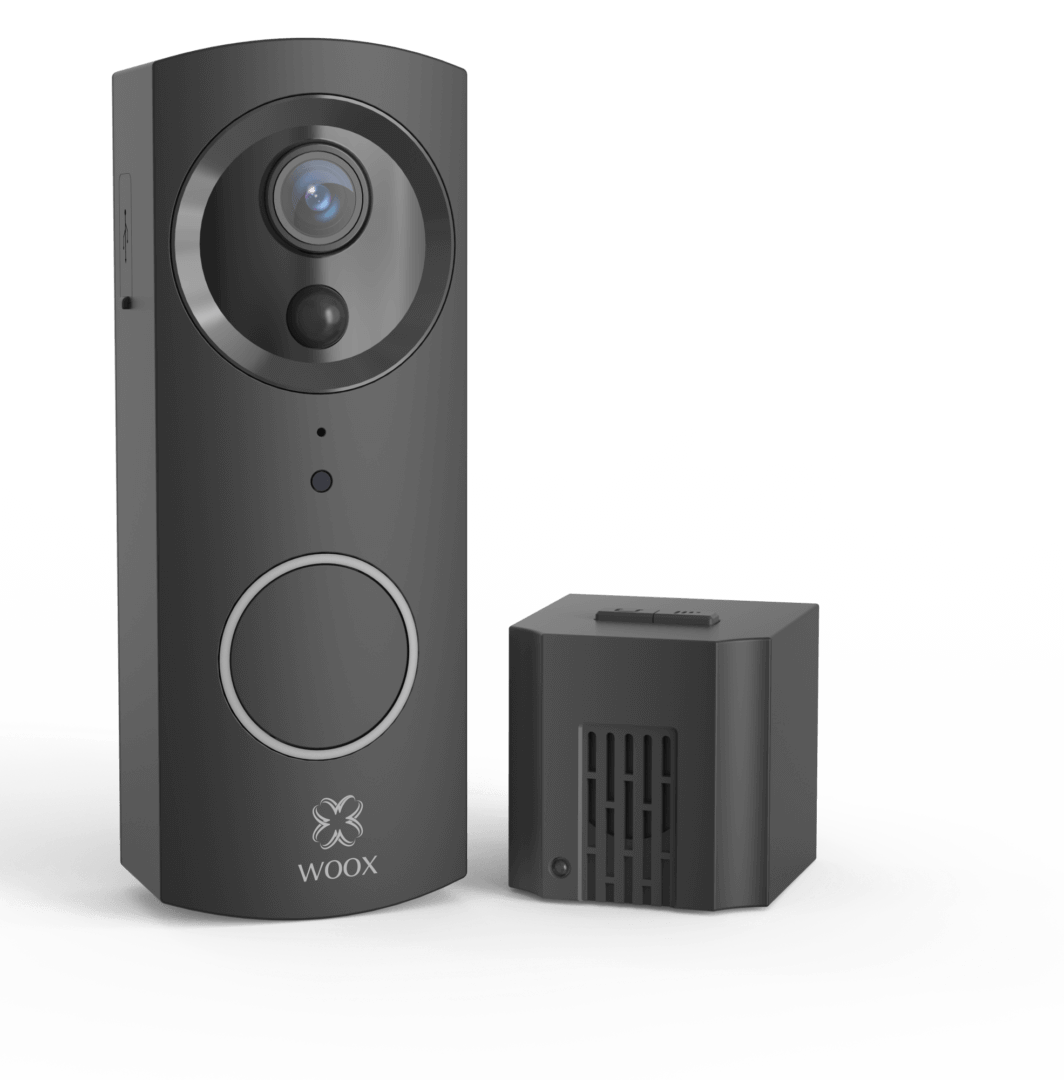

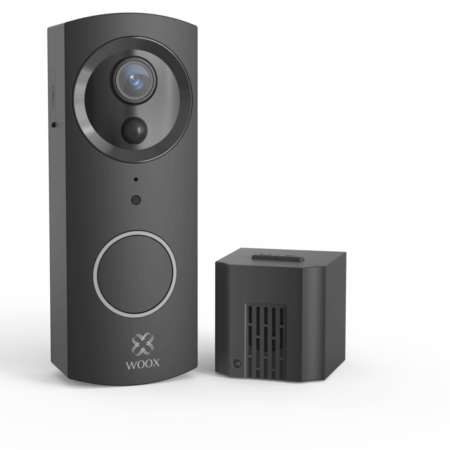

Woox R9061 Video Doorbell & Chime


2 in stock

FREE SHIPPING within the EU to your doorstep!

  • Attractive appearance: modern design with anthracite-colored housing.
  • Reliable charging power: 2 pcs. of rechargeable 2600mAh batteries ensure uninterrupted operation for 3-6 months (depending on the usage).
  • Easy preparation: no subscriptions or separate hubs needed – all you need is a WiFi connection.
  • Intelligent management: receive in-app notifications about visitors! The high-resolution infrared camera, microphone, and speakerphone will allow you to communicate comfortably with the visitor.
Categories: ,


1080p Full HD quality
Motion detection
Two-way Audio
IP54 Water resistance
Night vision
Doorbell & Chime
Rechargeable batteries
Control via app

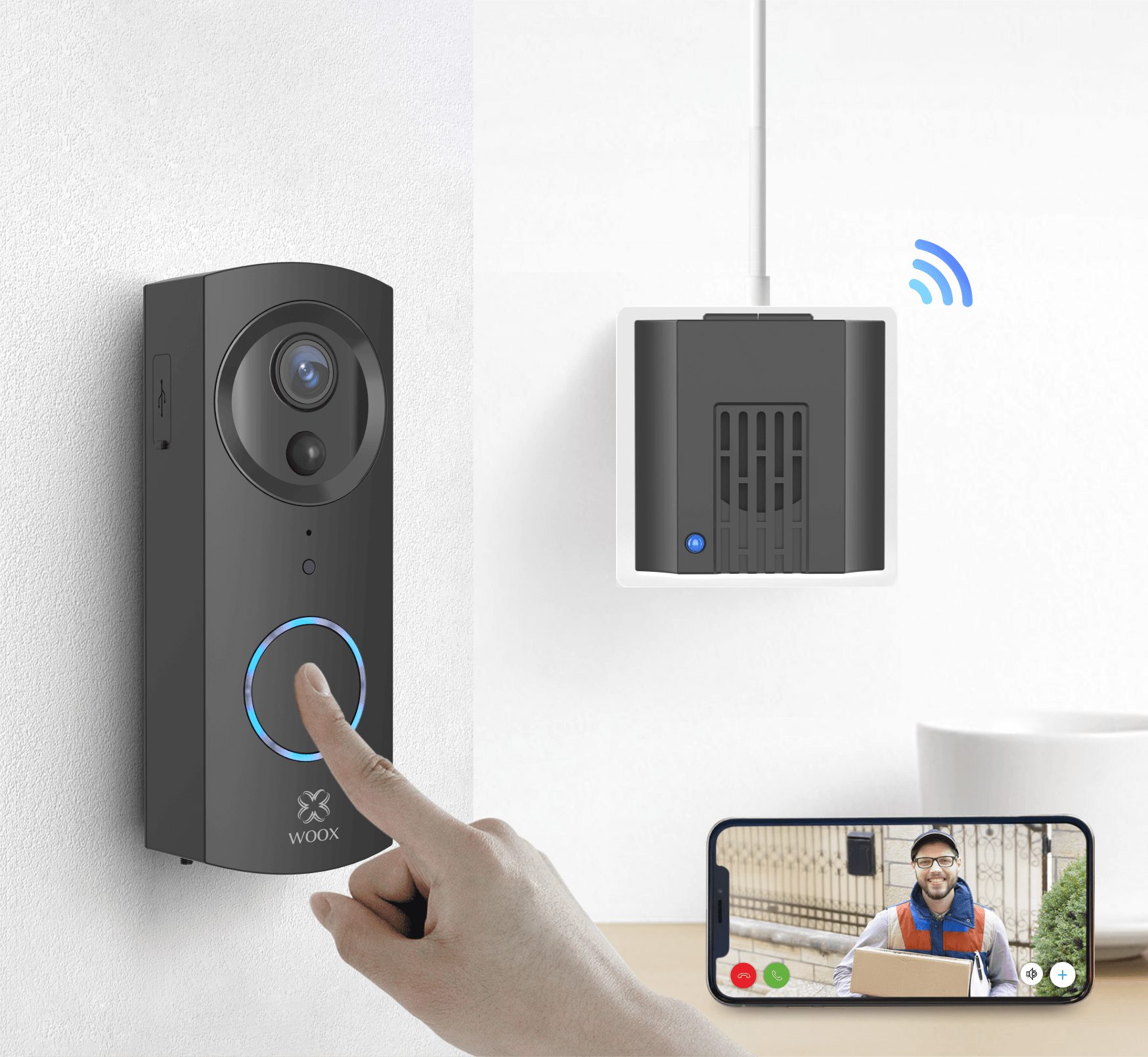

Smart Video Doorbell

With the help of the WOOX Home app, you will receive notifications about visitors, and will also be able to communicate with the visitor with the help of an infrared camera, a two-way microphone, and a speaker.

Swift setup

Run the WOOX smart video doorbell & chime through your existing home Wi-Fi network with no need for a separate hub or paid subscription service, set up is easy as 1,2,3.

Battery Capacity

The video doorbell is powered by 2 pcs. of 18650 type rechargeable batteries, each powered with 2600 mAh. Fully charged batteries last from 3 months to 6 months, depending on the intensity of usage/interactions, such as PIR sensor settings and alerts, and the number of recordings saved by the doorbell.

When the battery reaches the 10% charge limit, the user receives a warning signal to charge the doorbell on time.

Charging is performed using the supplied Micro USB to USB cable.

Video Assistant support

Link the doorbell with one of the virtual video assistants.

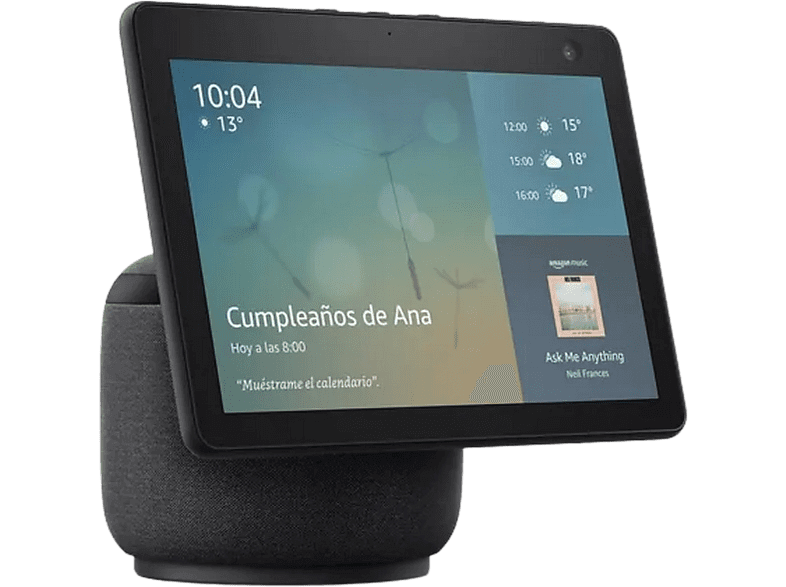

Amazon Echo Show

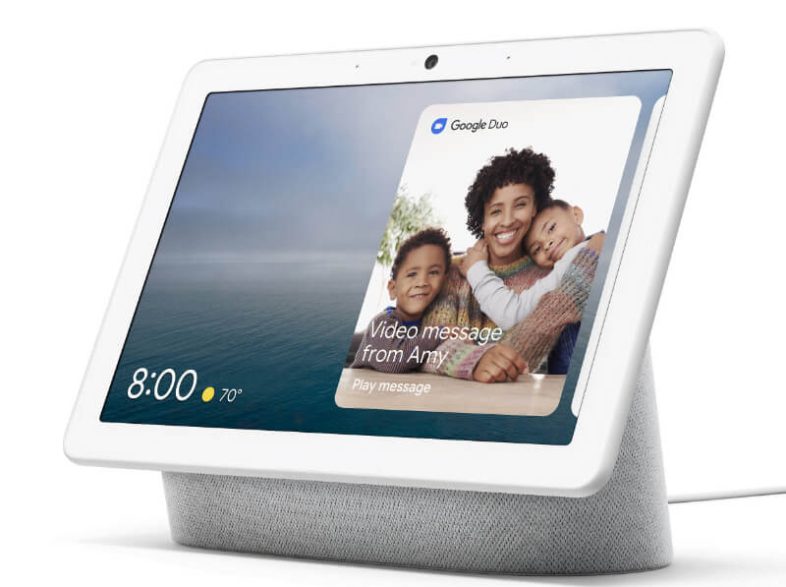

Google Nest Hub

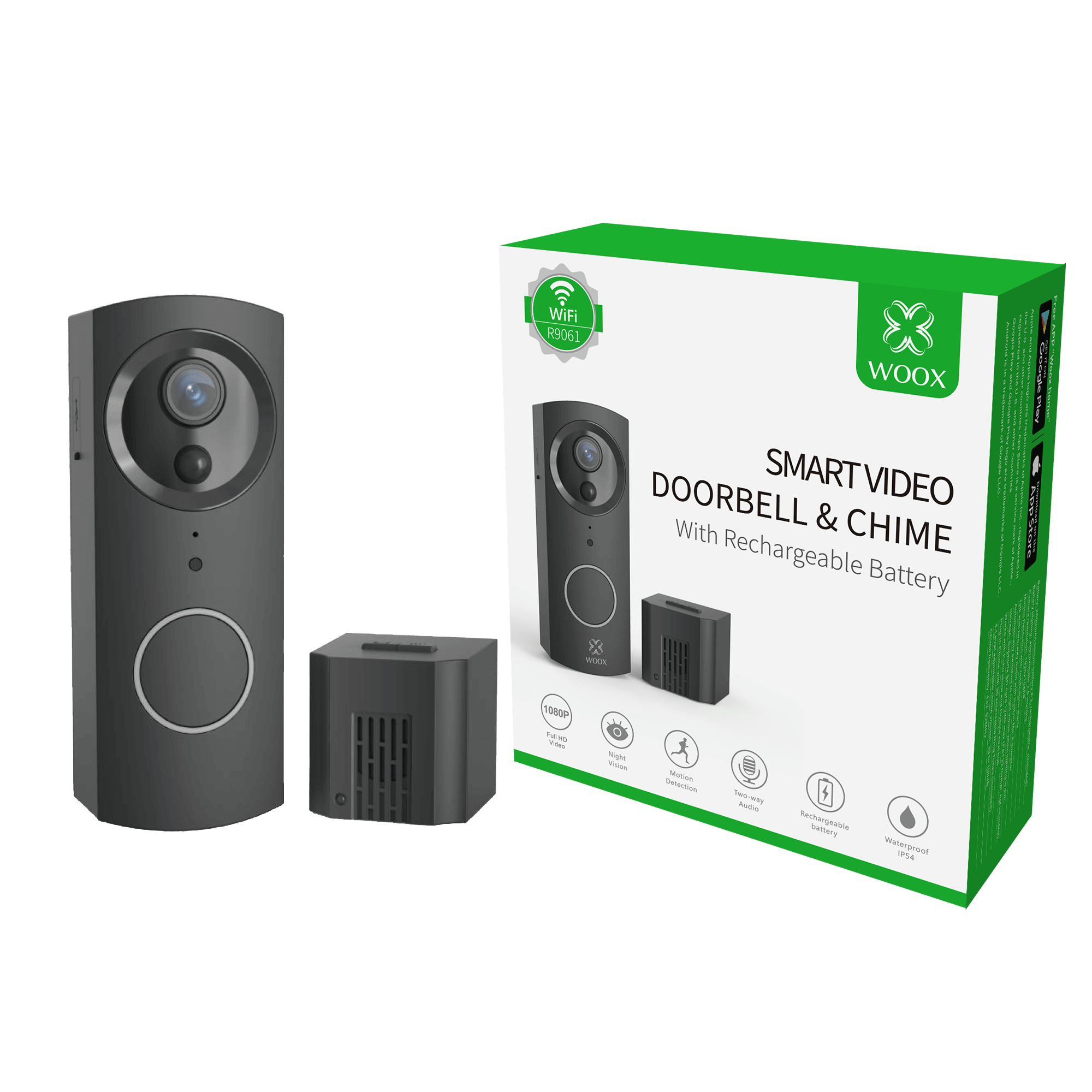

In the Box

• R9061 Smart video doorbell x1
User manual 1x
• Indoor chime unit x1
• Reset pin x1
• Screws and wall plugs x 5
• Grub screw x 4
• L shaped screw driver x 1
• 2600mAh Lithium-ion battery x 2
• USB cable 1x



Can I share it with family and friends?

Yes, you can share your cameras with family and friends who will have access to view the camera and control your bulbs, plugs, and other devices. In the app, click the Family name at the top and click on the “Home Management” button, and you will be able to give or revoke sharing permissions. In order to share, the other user should already have downloaded the app and registered a new account.

What’s the Wireless Range?

The range of your home Wi-Fi is heavily dependent on your home router and the conditions of the room. Check with your router specifications for exact range data.

How many cameras can I control?

WOOX Security app can control an unlimited amount of devices in an unlimited amount of locations. Your router may have a limit on how many devices can be connected to one router.

My device can’t be connected to the network with App

• Make sure the device is under the config status (indicator light is flashing quickly).
• Make sure the Wi-Fi is available and the device is not far away from the router.
• Make sure the Wi-Fi password you input is correct.

My device shows offline in my App

• Make sure the device is powered on.
• Make sure the network is stable and the Wi-Fi name and password are not modifed. If not, add the device again.
• If the network is normal, but it’s still offline. Check if there are too many Wi-Fi connections. You can restart your router to check the status of the device.


Model Name R9061
Brand WOOX
Warranty 2 years
WiFi Distance 70M at open space, 15M across the wall
Battery 2600mAh lithium battery X 2, rechargeable. (included)
Battery Lifetime Approximately 3-6 months
Camera Resolution 1920x1080p (Full HD)
Processor HI3518E
Lens 4 mm 4 glass
Visual Angle DFOV 120 °
IR LED 6 pcs. IR LEDs
Night Vision Automatically switches to night vision when lighting is dim, distance: 5 meters
Upgrade Support OTA or update firmware by Micro SD card
Talk With two-way audio with a built-in Mic & Speaker
Built-in MIC -38 dB mic
Built-in Speaker 8Ω/1w speaker
Video Compression H.264
Notification Precision >98%
Remote Wakeup in 5sec
Motion Detection PIR 6M distance
PIR High/Middle/Low/Close 4 levels
Working Temperature -20 ℃ to 55 ℃

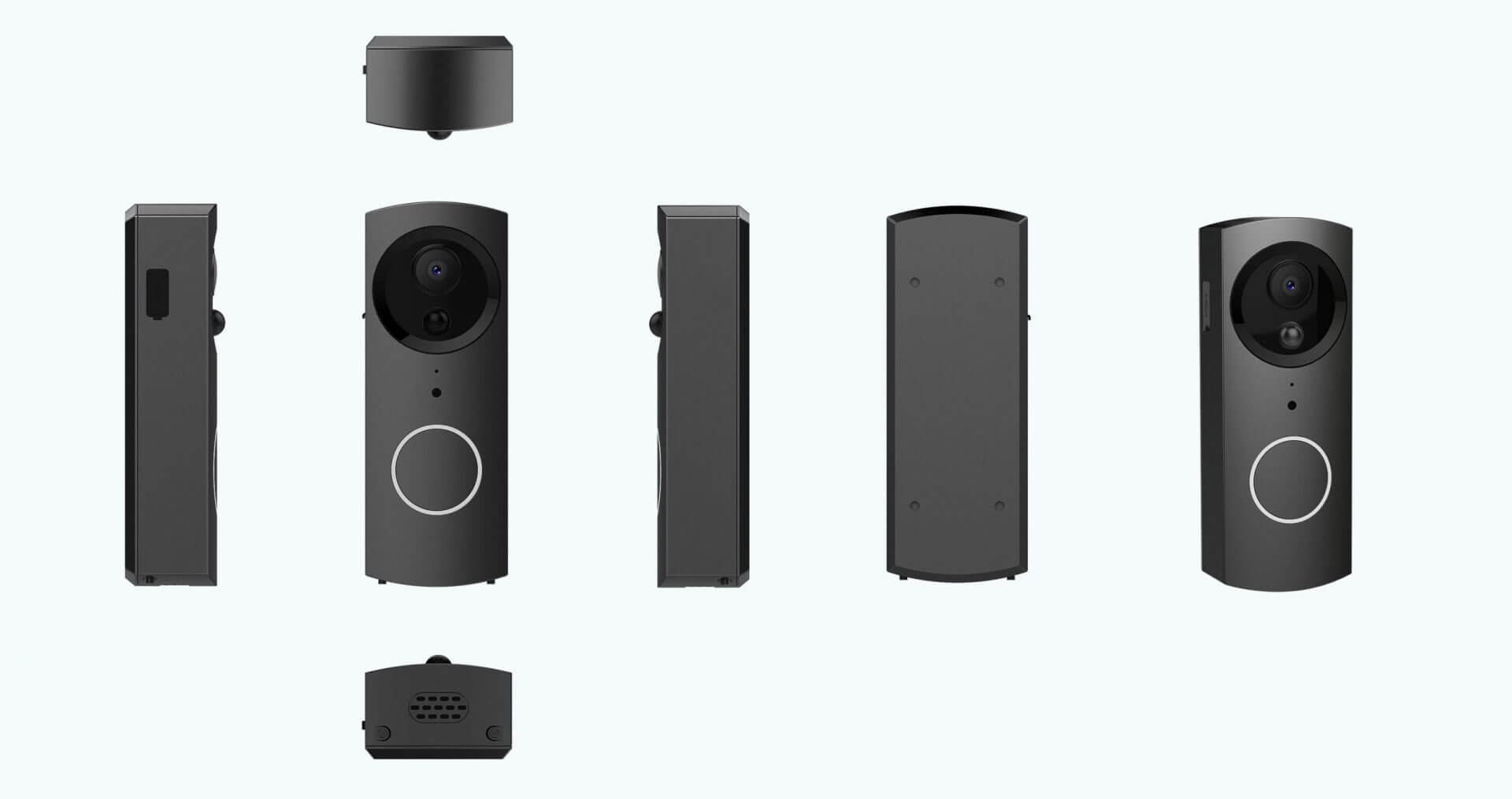

Dimensions Height: 135mm, Width: 50mm Depth: 33.5mm
Net Weight 128 g
Waterproof IP54

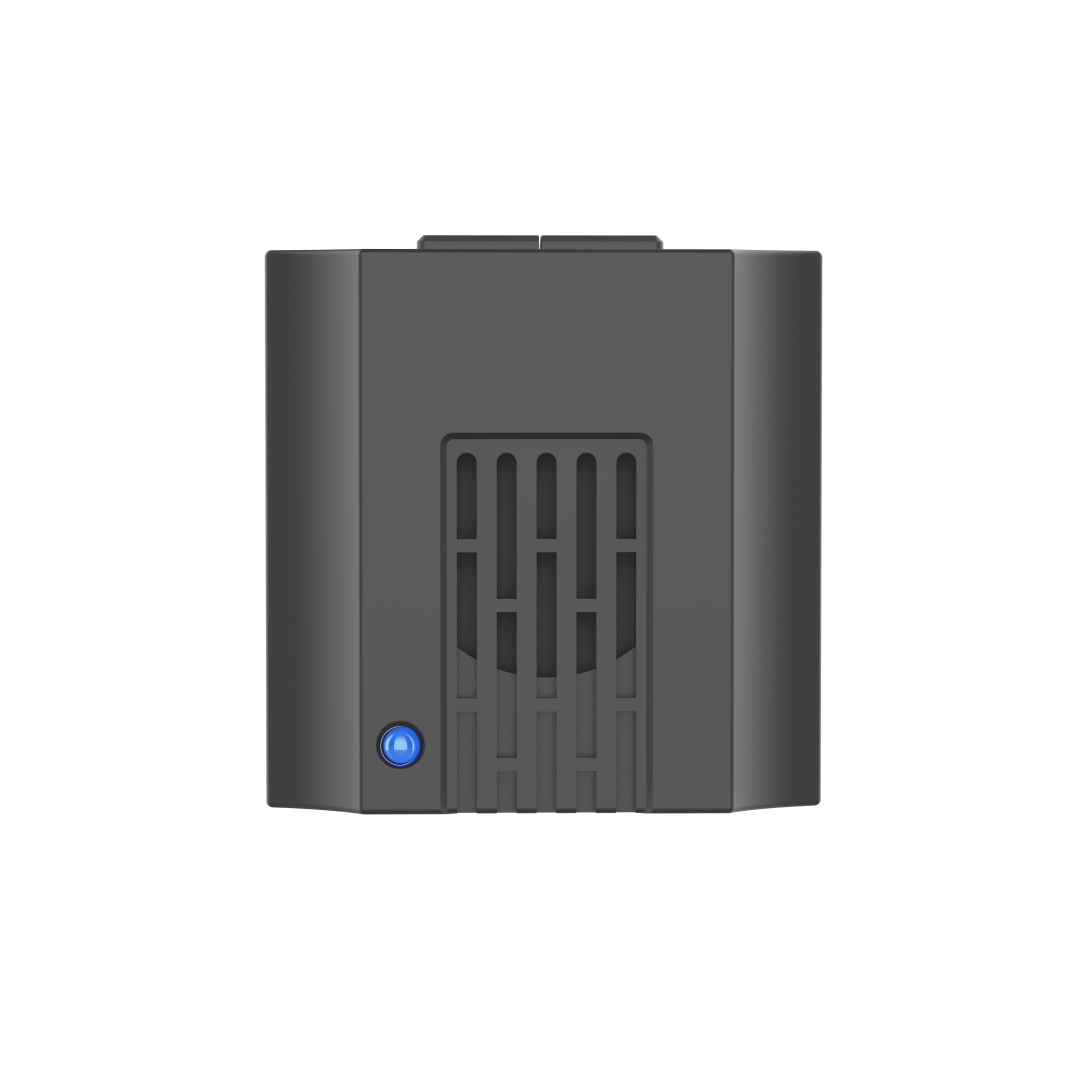

Chime Plug-in Chime with 36 selectable Ring Tones (included)
Chime Volume 4-Level adjustable chime volume: 30 to 100dB
Chime Frequency 433. 92MHz
Chime RF433 Distance 20M indoors
